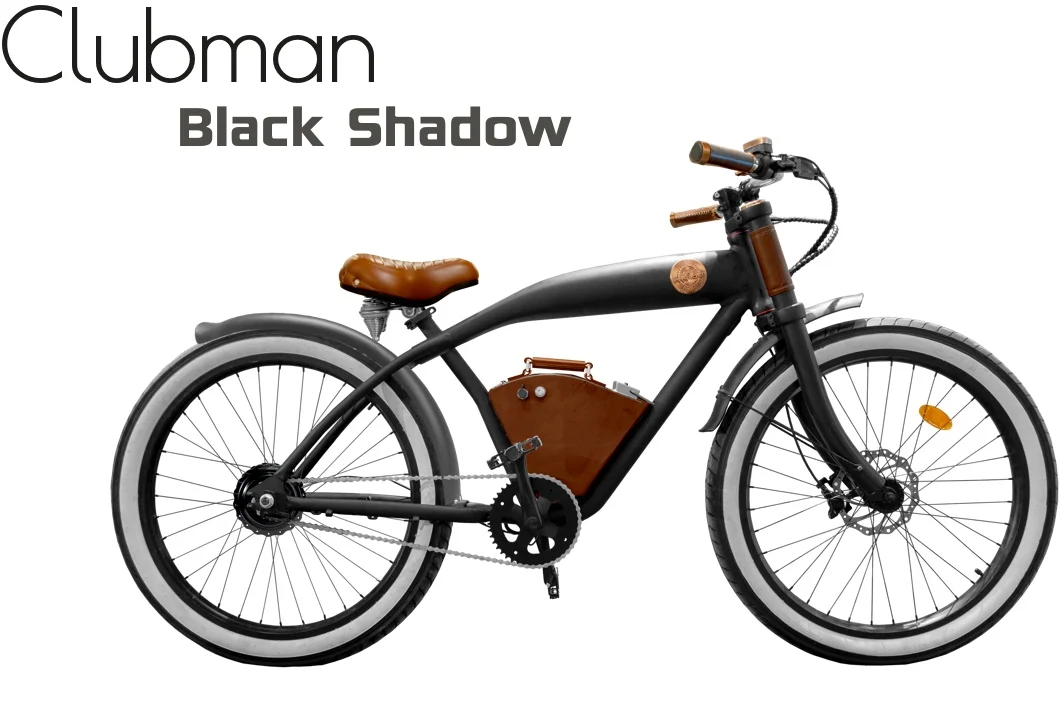

Clubman

sold out

Clubman

3,200.00

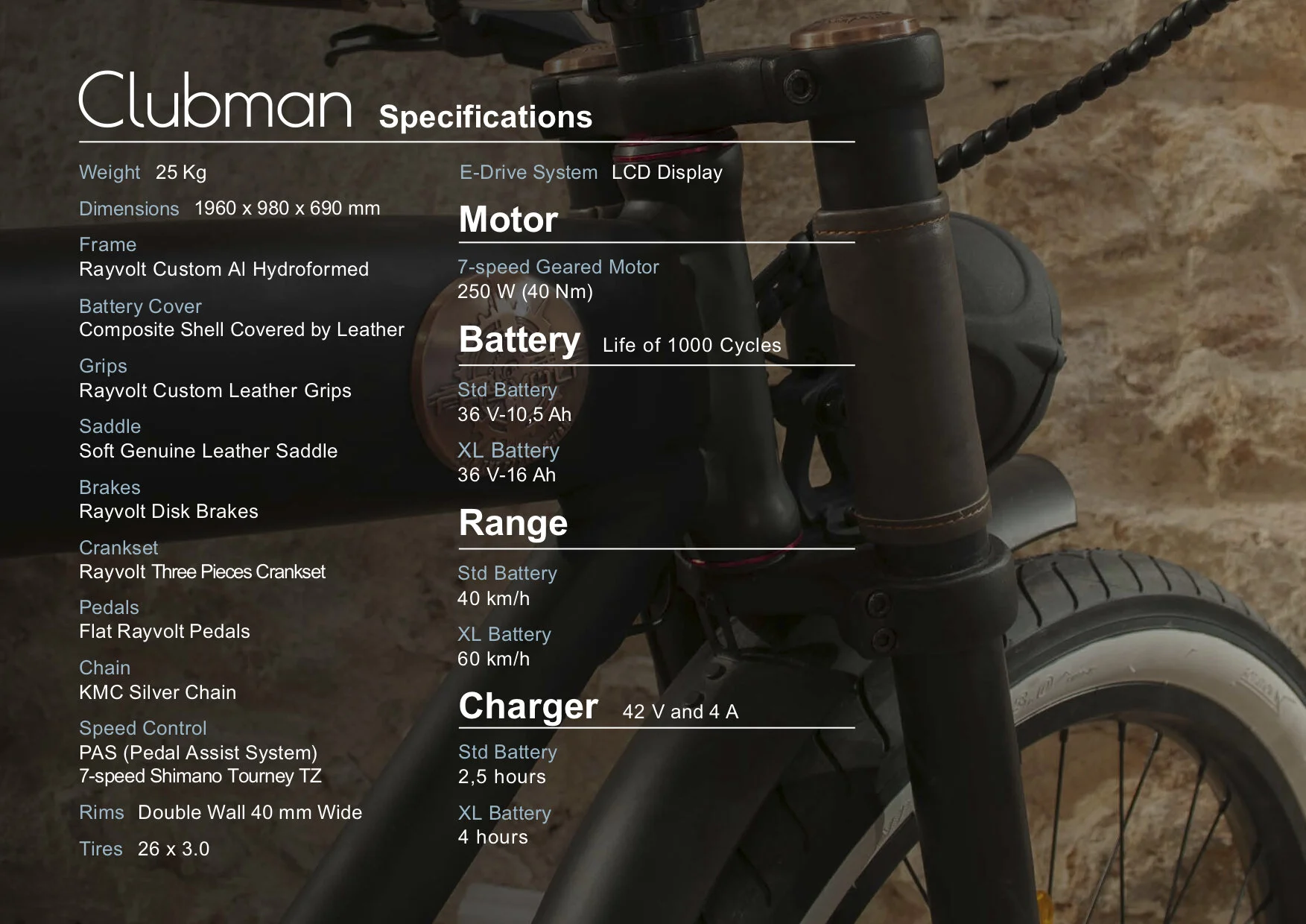

FRAME

Carbon Steel

DRIVE

MOTOR [ECO + SPORT] : RAYVOLT 200W - 400W [25 km/h - 35 km/h] power can be modified electronically via E.I.V.A or the E.I.V.A [APP] to meet local regulatory requirements

MOTOR [POWER] : RAYVOLT 250W - 1000W [35 km/h - 45 km/h] power can be modified electronically via E.I.V.A or the E.I.V.A [APP] to meet local regulatory requirements

BATTERY [ECO] : SAMSUNG Li-ion : 48V - 10.5A [504Wh] 1000 life-cycle

BATTERY [SPORT + POWER] : SAMSUNG Li-ion : 48V - 21A [1008Wh] 1000 life-cycle

CHAIN : KMC gold detail edition

CRANKSET : RAYVOLT two piece crank system

BRAKES

FRONT BRAKE : RAYVOLT hydraulic disk [160mm] iRBS [Regenerative] 10A - 50A B/P

REAR BRAKE : RAYVOLT hydraulic disk [160mm] iRBS [Regenerative] 10A - 50A B/P

COCKPIT

CONTROL : RAYVOLT PAS [Pedal Assist System] + RAYVOLT TDS [Thumb Drive System]

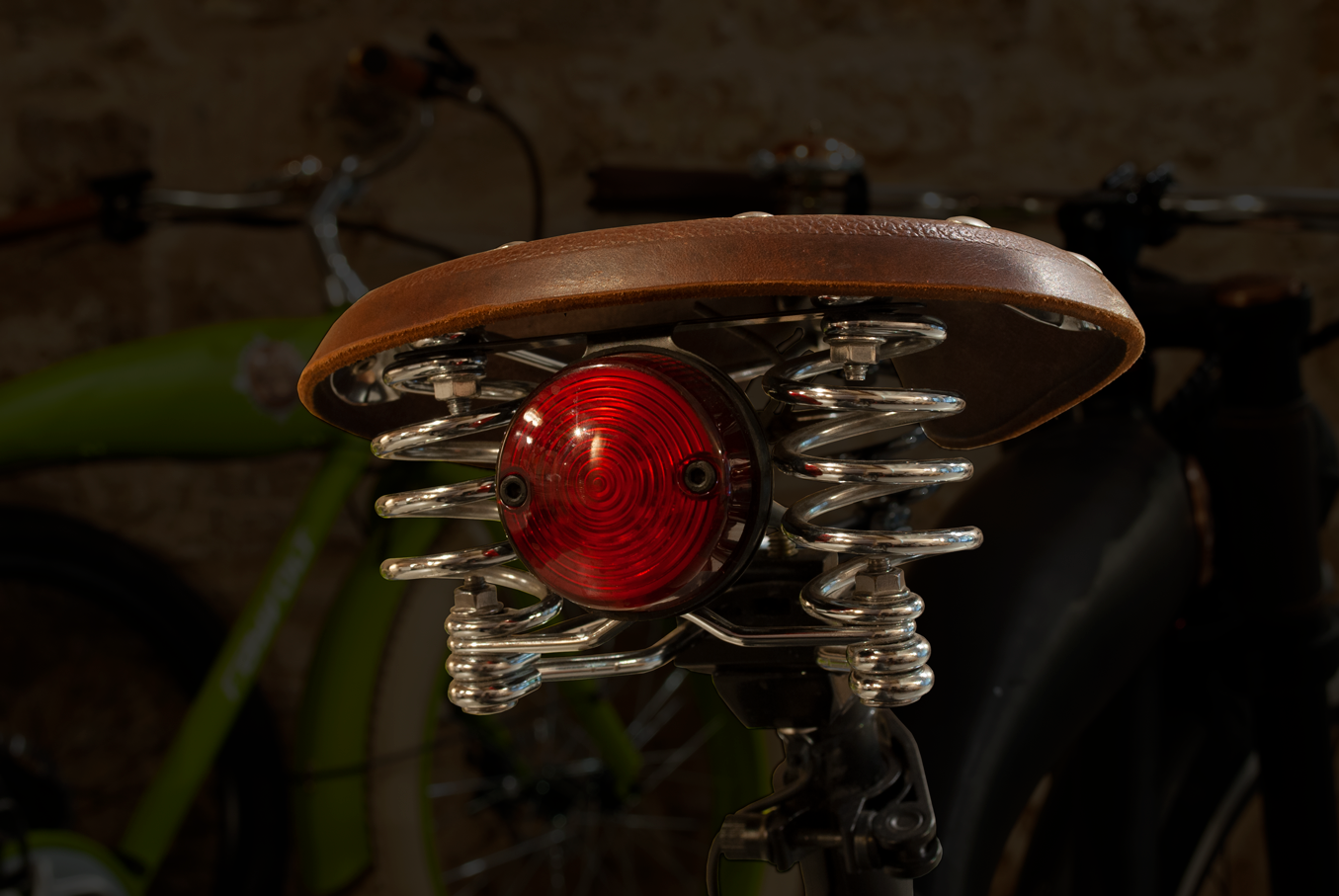

SADDLE : RAYVOLT vintage spring w/ leather

GRIPS : RAYVOLT comfort w/ leather

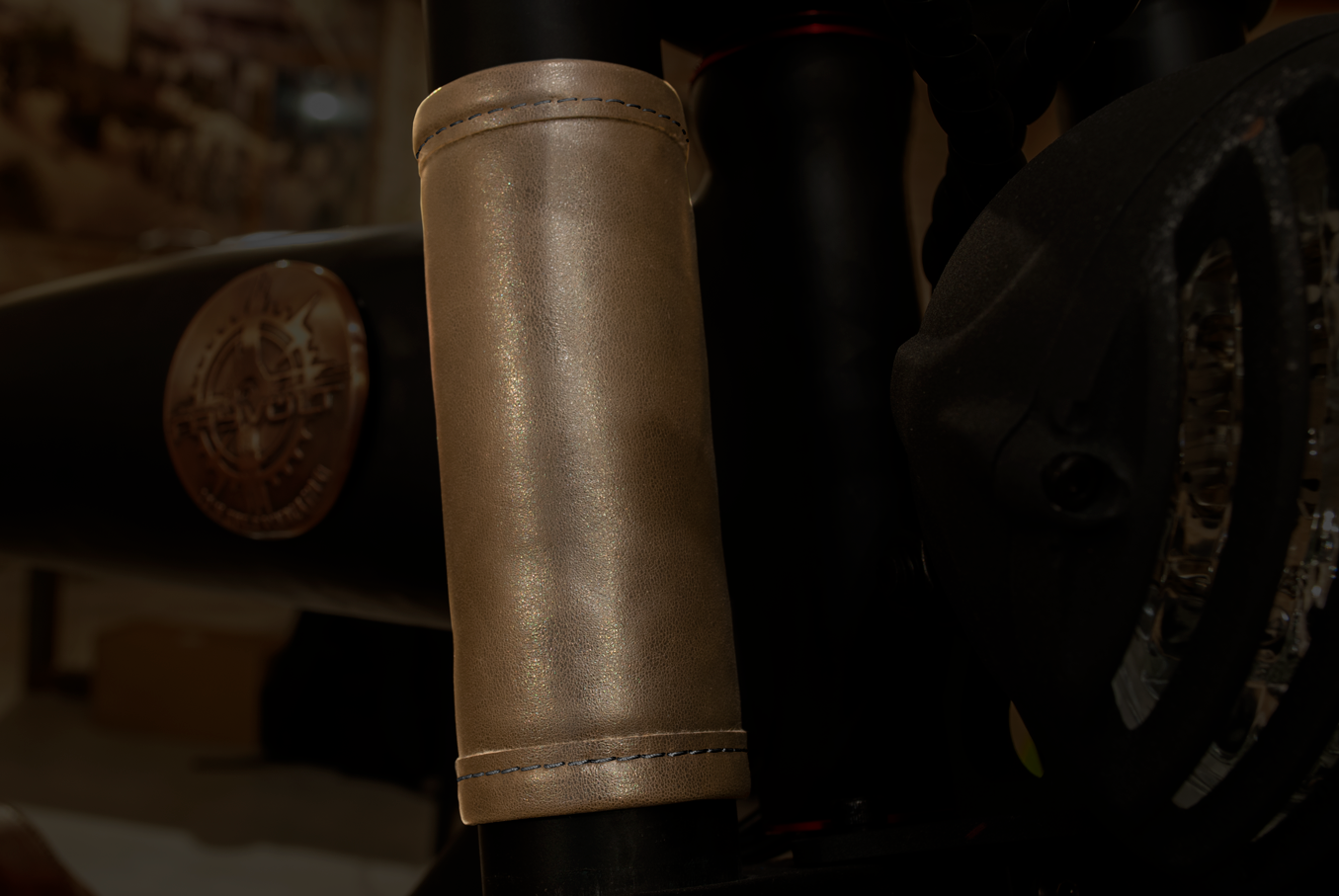

COVER : RAYVOLT composite shell w/ leather

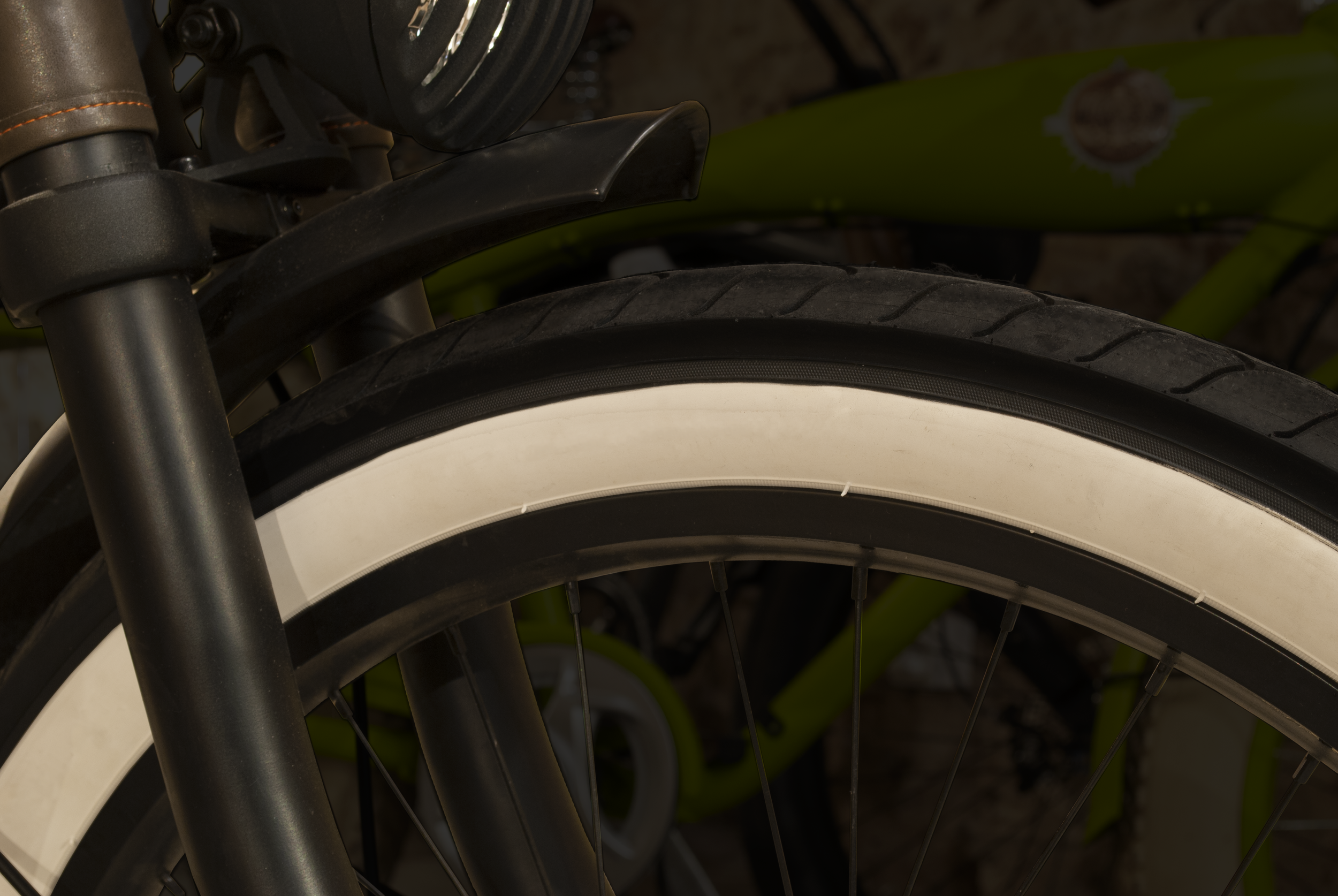

WHEELS/TIRES

MEDIUM : 24 inch x 3 inch [40mm double wall thickness]


LARGE : 26 inch x 3 inch [40mm double wall thickness]

WEIGHT

MEDIUM : Medium w/ 24 inch wheel [24 kg]


LARGE : Large w/ 26 inch wheel [34 kg]

OTHER

CHARGER : RAYVOLT Li-ion smart charger : 54V - 4A [2h 30m charge time]

PEDALS : RAYVOLT flat pedals

Add To Cart
