Clubman with XL battery
Clubman with XL battery
LIVE THE CITY
A compact and urban bike that combines sport and refined style. For those who love the streets and the night. A comfortable vehicle for the life in the city.
FRAME
Carbon Steel
DRIVE
MOTOR RAYVOLT 200W - 400W [25 km/h - 35 km/h]
BATTERY XL SAMSUNG Li-ion : 48V - 21A [1008Wh] 1000 life-cycle
CHAIN : KMC gold detail edition
CRANKSET : RAYVOLT two piece crank system
BRAKES
FRONT BRAKE : RAYVOLT hydraulic disk [160mm] iRBS [Regenerative] 10A - 50A B/P
REAR BRAKE : RAYVOLT hydraulic disk [160mm] iRBS [Regenerative] 10A - 50A B/P
COCKPIT
CONTROL : RAYVOLT PAS [Pedal Assist System] + RAYVOLT TDS [Thumb Drive System]

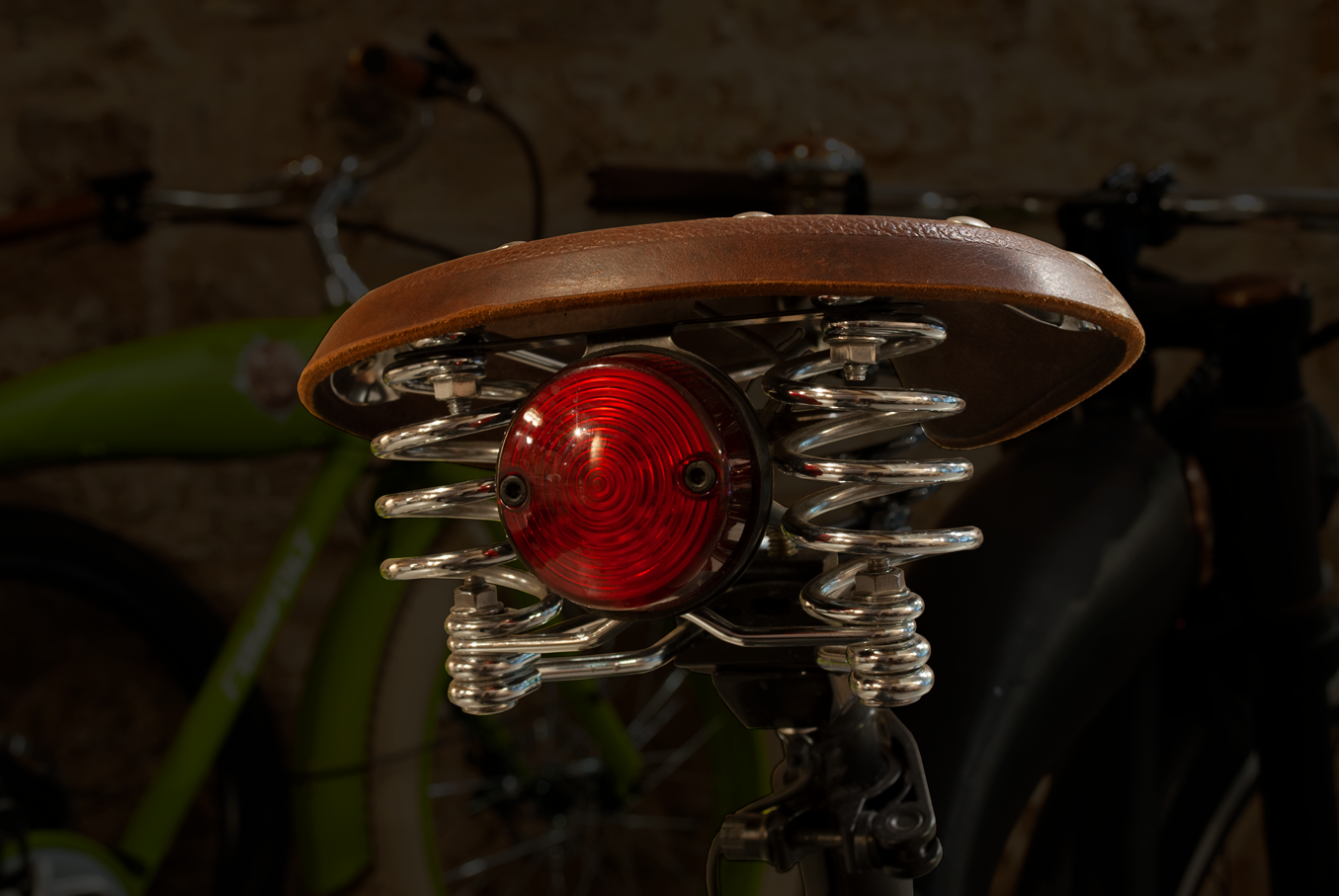

SADDLE : RAYVOLT vintage spring w/ leather
GRIPS : RAYVOLT comfort w/ leather

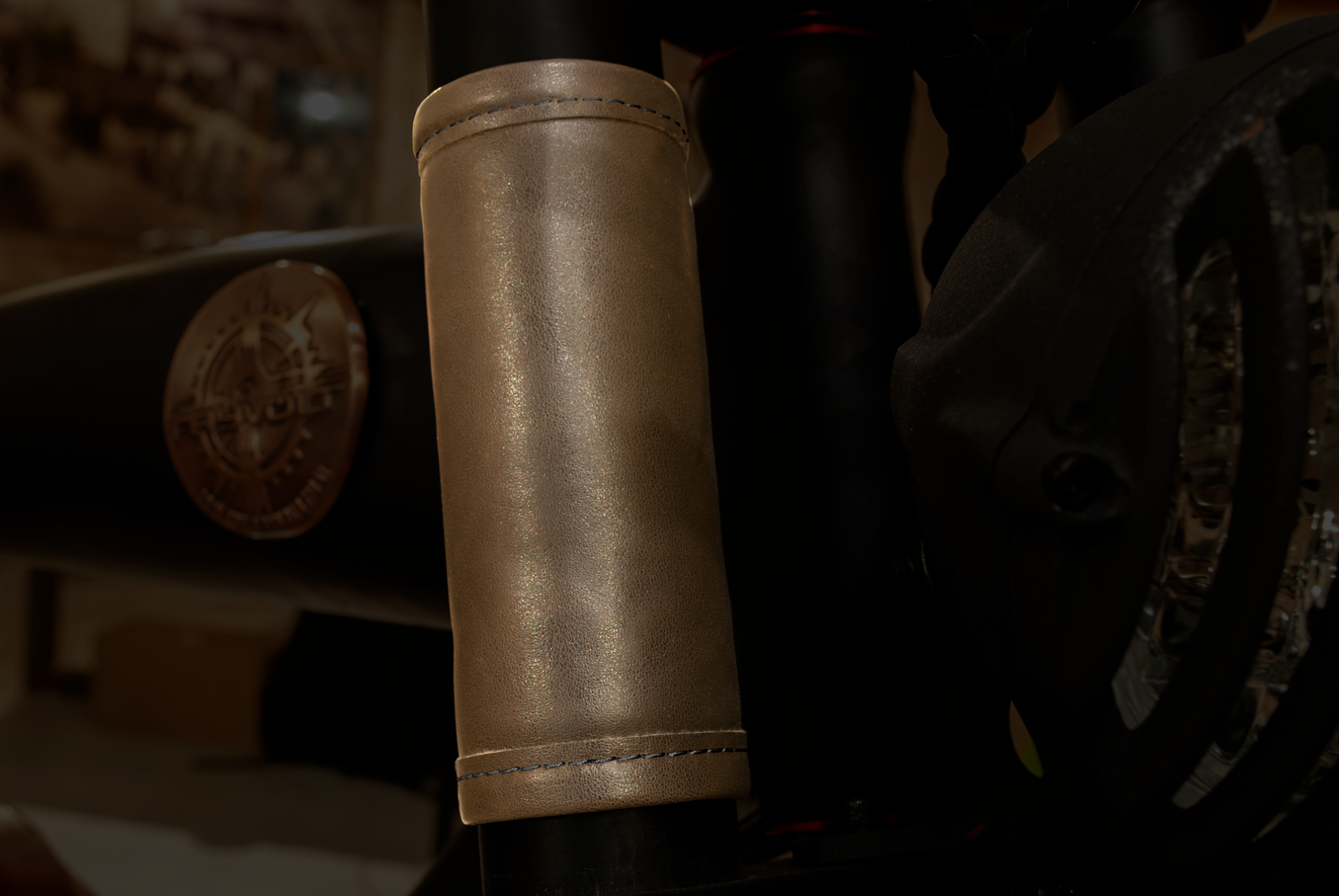

COVER : RAYVOLT composite shell w/ leather

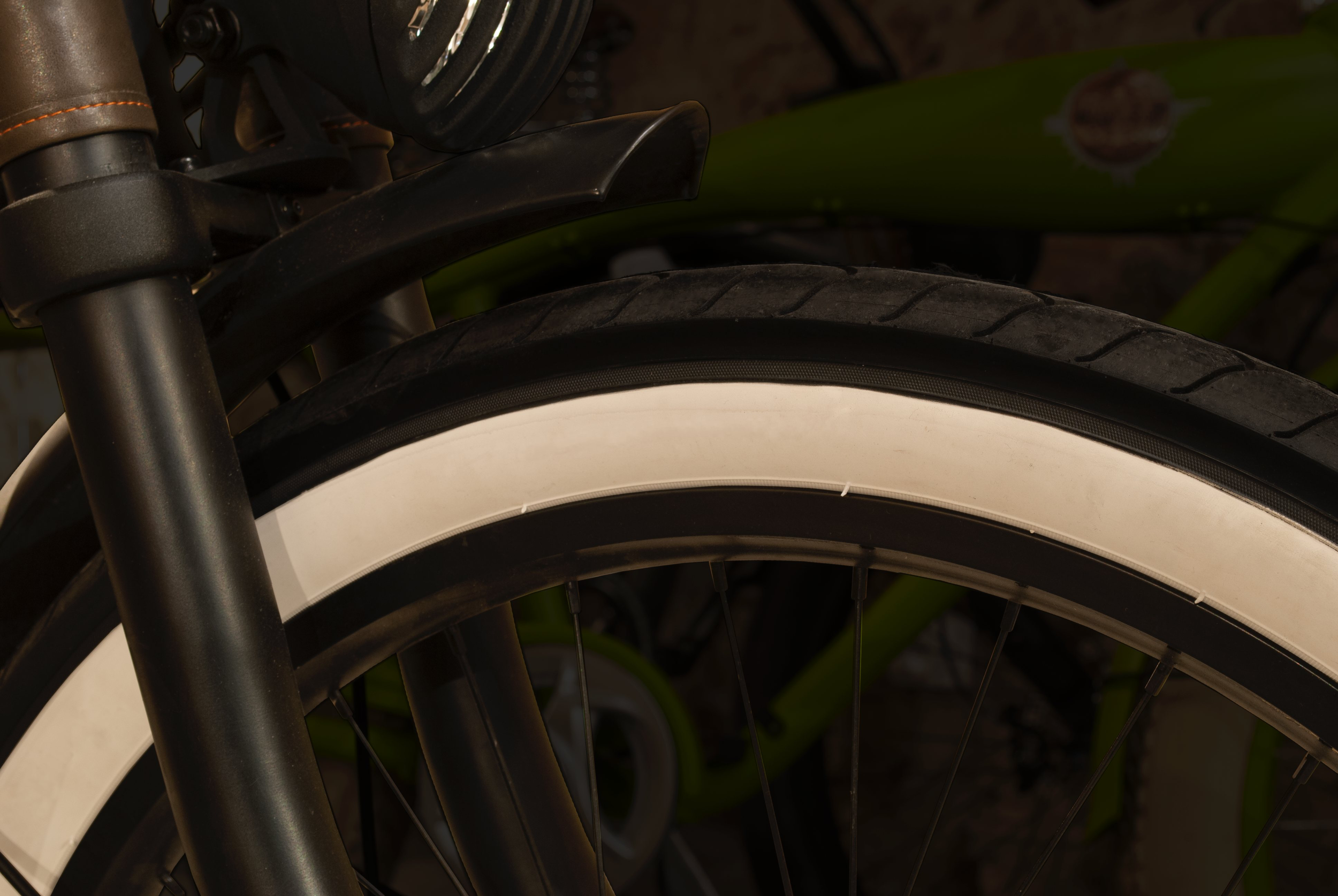

WHEELS/TIRES
MEDIUM : 24 inch x 3 inch [40mm double wall thickness]
LARGE : 26 inch x 3 inch [40mm double wall thickness]
WEIGHT
MEDIUM : Medium w/ 24 inch wheel [24 kg]
LARGE : Large w/ 26 inch wheel [34 kg]
OTHER
CHARGER : RAYVOLT Li-ion smart charger : 54V - 4A [2h 30m charge time]
PEDALS : RAYVOLT flat pedals
