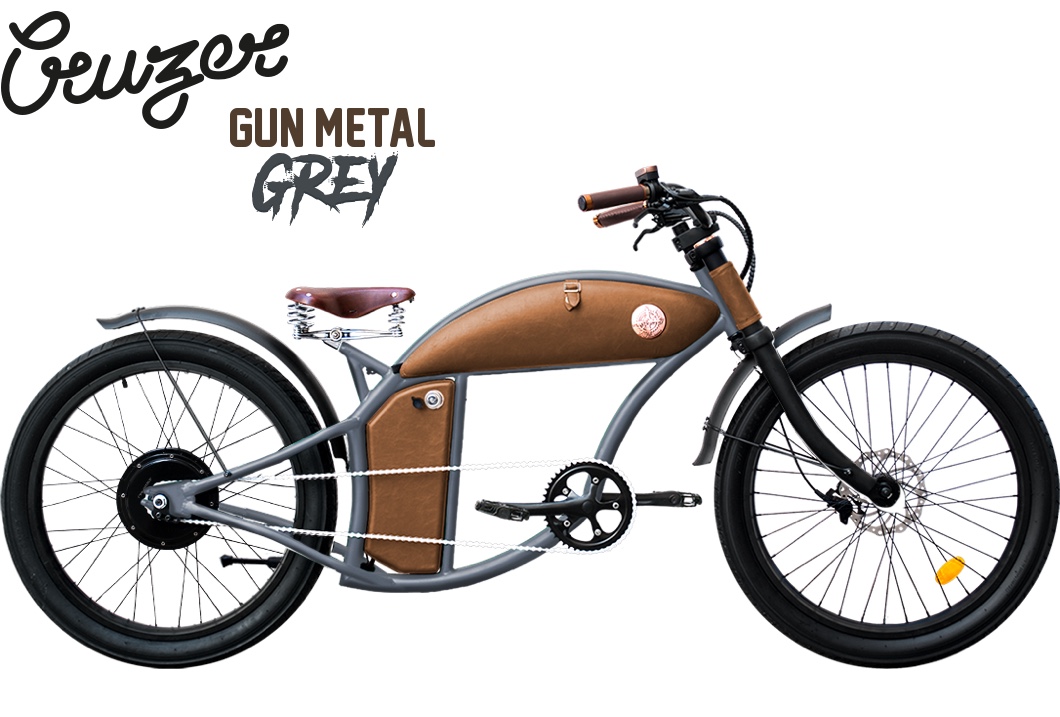

Cruzer [Smart/Standard Battery]
Cruzer [Smart/Standard Battery]
TIMELESS DESIGN
The cruzer is influenced by the motorcycle heyday of the 1960s bikes like the Cafe Racer and the California Beach Cruiser. This unique design combines smart technology with a vintage aesthetic to create a bike that looks classic and timeless at the same time

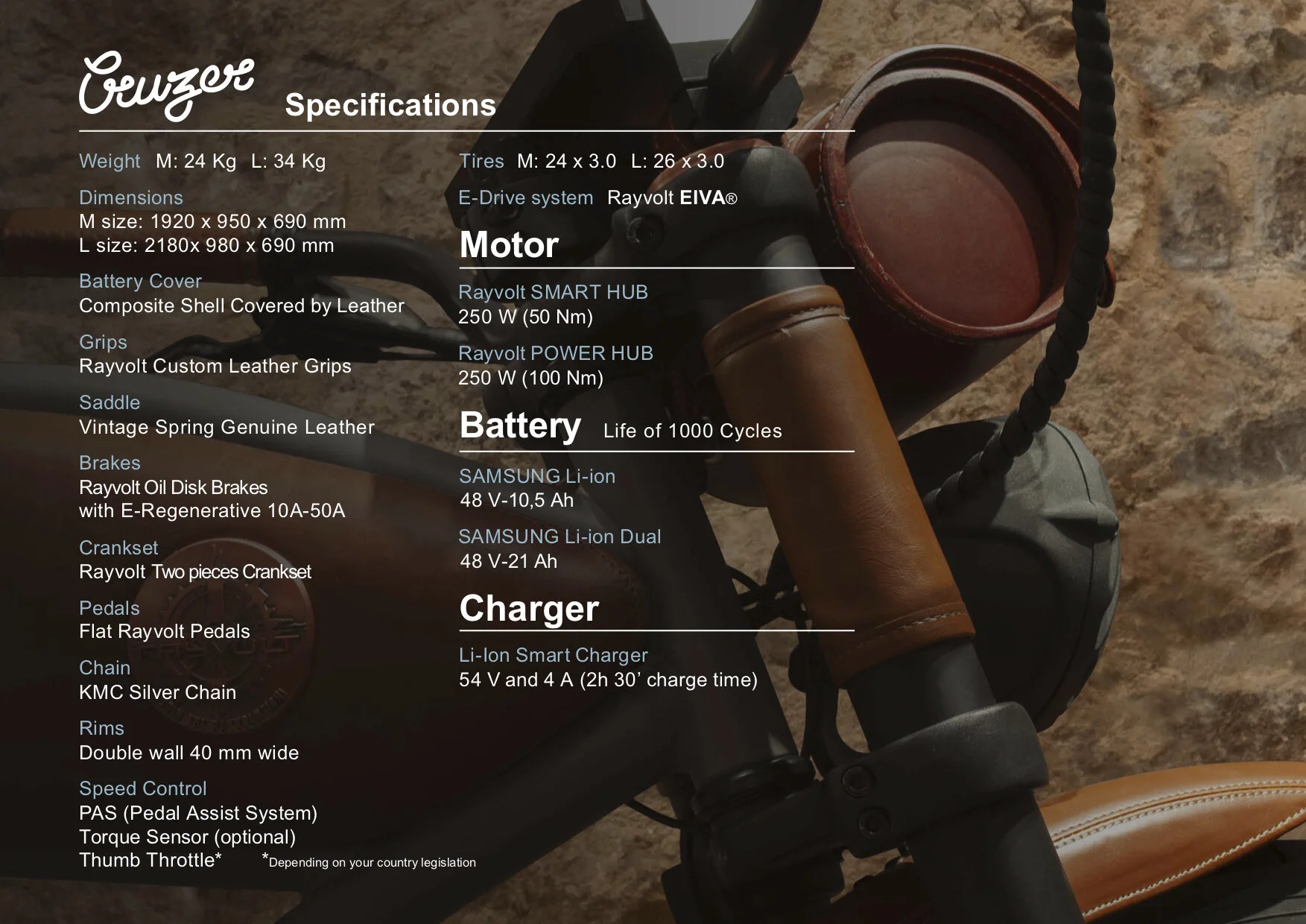

FRAME
Carbon Steel
DRIVE
MOTOR [ECO + SPORT] : RAYVOLT 200W - 400W [25 km/h - 35 km/h] power can be modified electronically via E.I.V.A or the E.I.V.A [APP] to meet local regulatory requirements
MOTOR [POWER] : RAYVOLT 250W - 1000W [35 km/h - 45 km/h] power can be modified electronically via E.I.V.A or the E.I.V.A [APP] to meet local regulatory requirements
BATTERY [ECO] : SAMSUNG Li-ion : 48V - 10.5A [504Wh] 1000 life-cycle
BATTERY [SPORT + POWER] : SAMSUNG Li-ion : 48V - 21A [1008Wh] 1000 life-cycle
CHAIN : KMC gold detail edition
CRANKSET : RAYVOLT two piece crank system
BRAKES

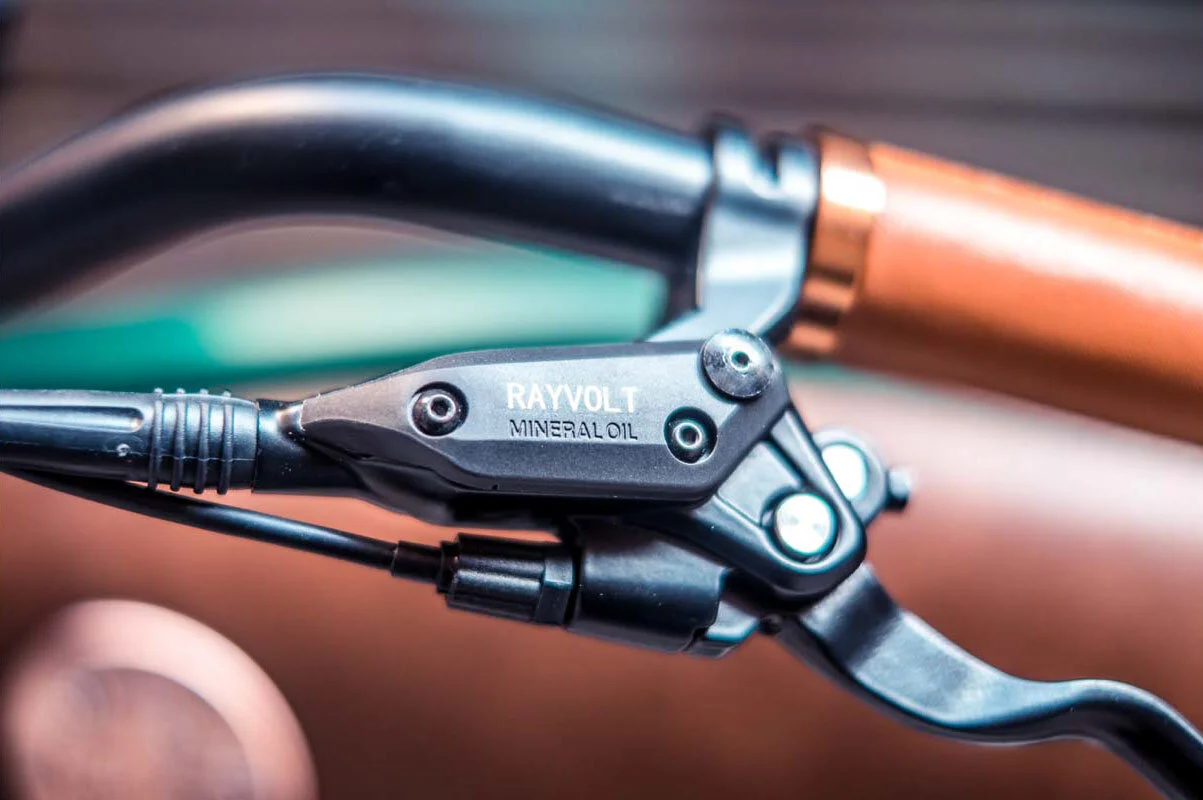

FRONT BRAKE : RAYVOLT hydraulic disk [160mm] iRBS [Regenerative] 10A - 50A B/P
REAR BRAKE : RAYVOLT hydraulic disk [160mm] iRBS [Regenerative] 10A - 50A B/P
COCKPIT
CONTROL : RAYVOLT PAS [Pedal Assist System] + RAYVOLT TDS [Thumb Drive System]
SADDLE : RAYVOLT vintage spring w/ leather
GRIPS : RAYVOLT comfort w/ leather
COVER : RAYVOLT composite shell w/ leather
WHEELS/TIRES
MEDIUM : 24 inch x 3 inch [40mm double wall thickness]
LARGE : 26 inch x 3 inch [40mm double wall thickness]
WEIGHT
MEDIUM : Medium w/ 24 inch wheel [24 kg]
LARGE : Large w/ 26 inch wheel [34 kg]
OTHER
CHARGER : RAYVOLT Li-ion smart charger : 54V - 4A [2h 30m charge time]
PEDALS : RAYVOLT flat pedals
