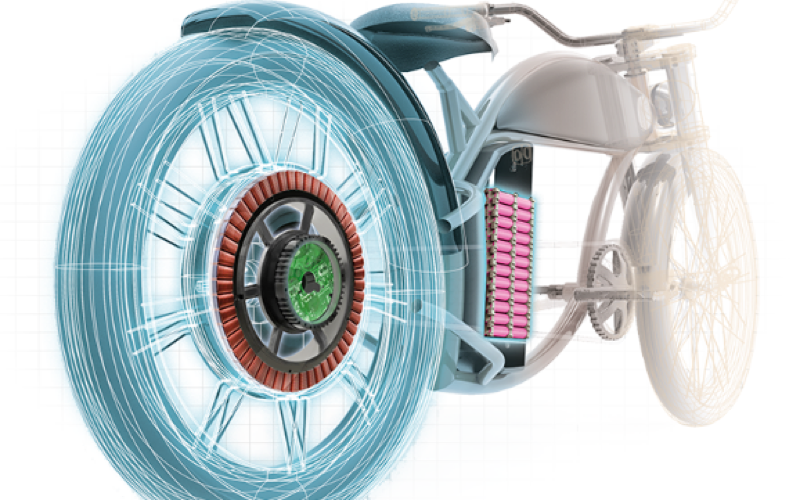

Rayvolt hubs are a very complex brushless 3 phase dc motor comprising of 48 different copper coils and magnets that are placed on the outermost perimeter of the motor for the best possible torque.

The built-in controller receives heat and position data from the coils and within one millisecond computes where to put the next load.

Such accuracy produces a Pure Sine Wave (PSW) current, offering unmatched ride comfort:

  • More Acceleration

  • More Response

  • More Torque

  • Less Noise

  • Less Vibration

  • Less Consumption





At the core of any electric vehicle, its performance and life expectancy are directly linked to the type of cell used. The capacity of the battery pack also depends on the amount of cells used. Rayvolt uses13 cells in a series to reach a nominal voltage of 48V. At peak voltage, a full charge of 54.6V gives incredible power. We use a minimum of 4 cells in parallel (52 cells in total) or 8 cells in parallel (104 Cells in total).

This gives an unmatched capacity of 550Wh and 1100Wh - most of the industry uses 300 to 360Wh.Battery quality is linked to the cells used and also the way it is packed. Using a state-of-the-art battery management system in our packs, each cell is connected to it before delivering the charge. This high-tech design balances the charge between each individual cell and can cut the connection in case of a short circuit. This ensures best possible performance while making the battery safer.

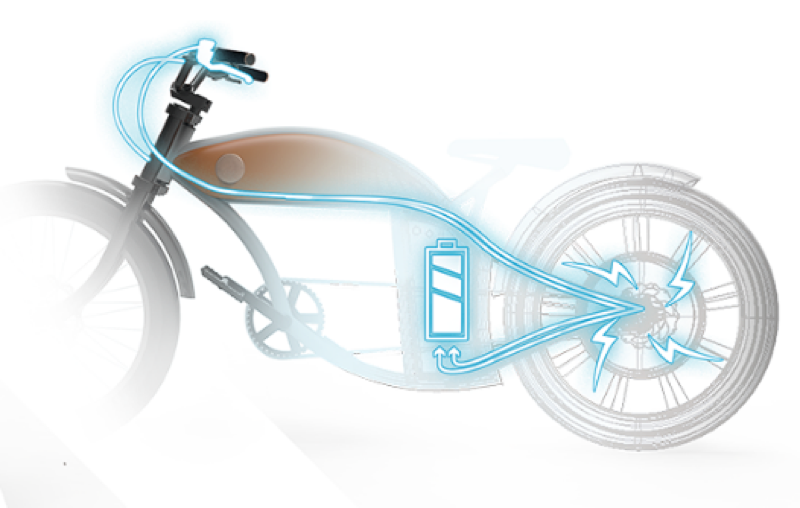

Intelligent Regenerative Brake System

We created an electronic braking system, fitted into the brake

levers, that sends a data signal to the motor controller that provokes a reverse effect in the motor. This converts torque into resistance using the wheel inertia to generate electricity and recharge the batteries.

In simple words, the regenerative braking acts like an ultra powerful dynamo when the levers are pulled.

The intelligent iRBS is linked to EIVA's built-in gyroscope allowing the bike to detect the cycling environment. It then provides the necessary amount of regenerative brake according to the angle of the hill.

iRBS paired with the cloud-based iTS allows you to remotely lock your rear wheel.



Intelligent Pedal Assist

We created an electronic braking system, fitted into the brake

levers, that sends a data signal to the motor controller that provokes a reverse effect in the motor. This converts torque into resistance using the wheel inertia to generate electricity and recharge the batteries.

In simple words, the regenerative braking acts like an ultra powerful dynamo when the levers are pulled.

The intelligent iRBS is linked to EIVA's built-in gyroscope allowing the bike to detect the cycling environment. It then provides the necessary amount of regenerative brake according to the angle of the hill.

iRBS paired with the cloud-based iTS allows you to remotely lock your rear wheel.



The Eiva® is a Rayvolt's developed software to control, customize and monitor your Rayvolt bike.

An Eiva® computer can be purchased and secured mounted to the handlebars, ready to go whenever you are. The software can also be downloaded for use on an existing Android or iPhone.

1. Display 360º

Monitor speed, battery state, MPH/KM Run & essential bike specs

2. Bluetooth bike status

Monitor the connection between the bike and Eiva®

3. iPas Monitoring

Adjust your pedal assistance here

4. Settings

Advanced configurations Also Technical support chat

5. Music

Play your music, your way.

6. Maps

GPS access
